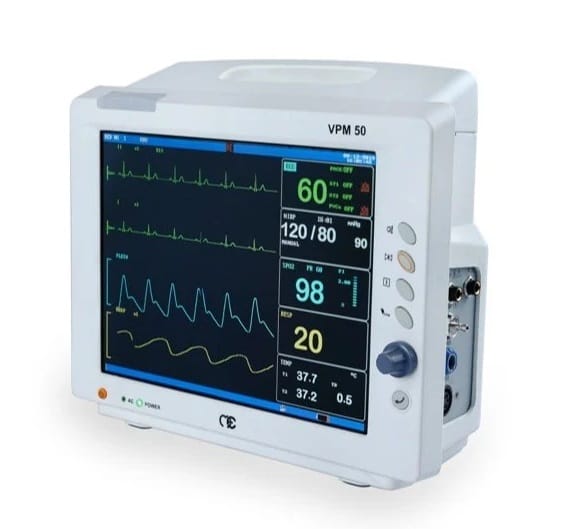

VPM 50 Patient Monitor
₹50,000
₹70,000 (29%OFF)1 item left in Stock
Features
- 12.1 colour TFT with Multi channel wave form desplay
- Light weight , easy to carry ,suitable for ambulance center
- Easy connecting with central monitoring system
- 90 Hours data storage
- Simple & easy operation
- Suitable for adult pediatrics & neonates
- Standerd parameters : 3/5 Lead ECG, SPO2 , Nibp , 2- Temp , PR
Estimated Delivery Time:_5 to 7 Working Days
| VARIANT | SELLER | PRICE | QUANTITY |
|---|
Specifications
| Brand | MAESTROS ELECTRONICS |
Description of product
VPM 50 Patient Monitor
Feature
- 1" Color TFT With Multi Channel Waveforms Display
- Light Weight, Easy To Carry, Suitable For Ambulance Centre
- Easy Connecting With Central Monitoring System
- 90 Hours Data Storage
- Simple & Easy Operation
- Suitable For Adult, Pediatrics And Neonates
- Standard Parameters: 3/5 Lead ECG, SP02, Nibp, 2-Temp, PR
Technical Specification:
ECG:
Electrode | 3 or 5 Leads |
Display | 5 Waveforms with HR |
Lead | I, II, III, aVR, aVL, aVF, V (5 Lead) I, II or III ( 3 Lead) |
Gain Selection | x1/4, x1/2, x1 and x2 |
Frequency Response | Diagnostic: 0.05 to 90 Hz |
Calibration Signal | 1(mV p-p), Accuracy: +5% |
ECG Signal Range | ±8 m V (Vp -p) |
Pulse Oximetry:
Range | 0 to 100% |
Resolution | 1% |
Accuracy | 70% to 99% range ±2% / 0 to 69%, undefined |
Methode | Dual wavelength LED |
Nibp:
Technique | Oscillometric during inflation |
Range | Adult: 40-270 mm Hg |
Measurement Cycle | <40 sec, typical |
Cycles (Selectable) | 2,3,5,10,15,30 min1,2,4 hr |
Max. Allowable Cuff Pressure | Adult: 297±3 mm Hg |
Resolution | 1 mm Hg |
Transducer Accuracy | ±2 mm Hg or ±2% of reading |
Temperature (2 Channel):
Range, Accuracy | 0 - 50˚C + 0.1˚C |
Display Resolution | ±0.1˚C |
Probe | YSI 400 AND YSI 700 Series |
Respiration Rate:
Rate | Adult : 0 ~ 120 rpm |
Resolution | 1 rpm |
Accuracy | ±2 breath / min |
Heart (Pulse) Rate:
Source | User Selectable : Smart, ECG, Plinth, Nibp |
Range | Adult 15-300 bpm |
Accuracy | ±1 bpm or ±1 % |
Environment:
Operating Temperature | 59˚ - 95˚F (15˚ - 35˚C) |
Storage Temperature | 23˚ - 122˚F (-5˚ - 50˚C) |
Humidity | 15% to 90% |
Trends:
Memory | 96 Hr at 30 seconds intervals for a NIBP reading every 5 minutes |
Display | Trabular, graphical |
General:
Dimensions | 200 (L) x 100 (B) x 200 (T) mm |
Weight | 1.5 Kg |
Power | AC 100-240 V , 50/60 Hz |
Power Consumption | 35 W |
Battery | 14.8 V / 2200 Mah Li-Ion |
Recharge Time | 4.5 hours |
Operating Time | 3 Hours typical |
Standard Accessories:
Finger Probe | 1 No |
Mains Cable | 1 No |
Cuff (Adult) | 1 No |
5 Lead ECG Cable | 1 No |
Temperature Probe | 1 No |
