CARDIART 108T DIGI

The iconic single-channel ECG works on real-time high fidelity thermal array recording. With sequential single-channel acquisition, the rugged machine comes with a rechargeable battery as well. 108T DIGI enables easy selection of leads and notifies if one of the leads is off position ensuring user friendliness.



Features

  • Single-channel ECG recorder
  • Lightweight, compact and portable design with one-touch operation ensures ease of use
  • 12-bit A/D converter, 0.1 Hz to 150 Hz bandwidth, 800Hz sampling frequency
  • Includes lead-off indication
  • Internal rechargeable NiMH battery – 2.5 hrs of operation
  • Rubber keypad with function keys and LED indicators
  • Real-time high fidelity thermal array recording



Technical Specification

General

  • Dimension (Incl Handle) - 325 mm (L) x 210 mm (W) x 90 mm (H)
  • Weight - < 2.6 Kgs



Environment

  • Operating Temperature - 10 to 40 deg. C.
  • Relative Humidity - 25 to 95% non-condensing
  • Storage Temperature - -10 to 50 deg. C.
  • Relative Humidity - 10 to 95% non-condensing



Standards

  • Safety Standard - Compliance to Class 1

                                     CF type as per IEC 60601-1

  • EMC - IEC 60601-1-2



Power Supply

  • Power supply - 230 V ± 10%; 50 Hz
  • Power consumption - Less than 6 VA
  • Battery - Internal rechargeable NiMH; 9.6 V 1500 mAH
  • Battery life - More than 100 recordings of 1 metre length with a fully charged new battery
  • Battery charging indicator - Yes
  • Battery Iow indication - Yes
  • Recharging time - Approximately 14 Hours 10096
  • Mains protection - Fuse: T 0.1 A
  • Battery protection - Polymer resettable fuse
  • Auto shutdown – Yes



Recording

  • Thermal paper - In rolls; Width 50 mm, Length 20 mts, gridded
  • Recording system - Thermal printer, 8 dots/mm
  • Print Width - 40 mm
  • Print channel - 1
  • Paper transport speed - 25 or 50 mm / sec



Sensitivity

  • Input Dynamics - ± 300 mV @ O Hz; ± 5 mV in the pass band
  • Input impedance - > 100 M ohms
  • Frequency Response - 0.1 Hz to 150 Hz (-3 dB) without Mains/ Muscle Filter
  • Time constant - 1.6 seconds
  • CMRR - > 90 dB @ 50 Hz
  • DF protection – Internal



ECG

  • ECG Acquisition - 12 bits; 800 samples/sec.
  • ECG Recording - Real time acquisition and printing of selected lead
  • Recordable Leads - Lead l, II, III, aVR, aVL, aVF or V
  • Recording Sensitivity - 5, 10, or 20 mm/mV ± 5%
  • Filter - Digital linear phase Mains interference cum muscle tremor filter (22 Hz - 3 dB)
  • Keyboard - Rubber keypad with 7 function keys and 15 LED function indicators

SKU-0IFF6BZM9XU
in stock INR 22300
BPL
1 1

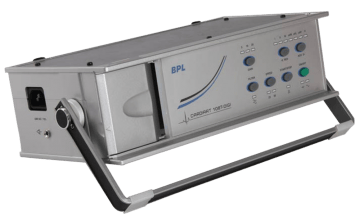

BPL Cardiart 108T DIGI

₹22,300
₹28,000   (20%OFF)

1 item left in Stock

Sold By: PBX202012
Features
  • Single-channel ECG recorder
  • Includes lead-off indication
  • Lightweight, compact and portable design with one-touch operation ensures ease of use
  • Internal rechargeable NiMH battery – 2.5 hrs of operation
  • 12-bit A/D converter, 0.1 Hz to 150 Hz bandwidth, 800Hz sampling frequency
  • Rubber keypad with function keys and LED indicators
  • Real-time high fidelity thermal array recording

Estimated Delivery Time:_5 to 7 Working Days


SHARE PRODUCT
VARIANT SELLER PRICE QUANTITY

Specifications

Brand BPL

Description of product

CARDIART 108T DIGI

The iconic single-channel ECG works on real-time high fidelity thermal array recording. With sequential single-channel acquisition, the rugged machine comes with a rechargeable battery as well. 108T DIGI enables easy selection of leads and notifies if one of the leads is off position ensuring user friendliness.



Features

  • Single-channel ECG recorder
  • Lightweight, compact and portable design with one-touch operation ensures ease of use
  • 12-bit A/D converter, 0.1 Hz to 150 Hz bandwidth, 800Hz sampling frequency
  • Includes lead-off indication
  • Internal rechargeable NiMH battery – 2.5 hrs of operation
  • Rubber keypad with function keys and LED indicators
  • Real-time high fidelity thermal array recording



Technical Specification

General

  • Dimension (Incl Handle) - 325 mm (L) x 210 mm (W) x 90 mm (H)
  • Weight - < 2.6 Kgs



Environment

  • Operating Temperature - 10 to 40 deg. C.
  • Relative Humidity - 25 to 95% non-condensing
  • Storage Temperature - -10 to 50 deg. C.
  • Relative Humidity - 10 to 95% non-condensing



Standards

  • Safety Standard - Compliance to Class 1

                                     CF type as per IEC 60601-1

  • EMC - IEC 60601-1-2



Power Supply

  • Power supply - 230 V ± 10%; 50 Hz
  • Power consumption - Less than 6 VA
  • Battery - Internal rechargeable NiMH; 9.6 V 1500 mAH
  • Battery life - More than 100 recordings of 1 metre length with a fully charged new battery
  • Battery charging indicator - Yes
  • Battery Iow indication - Yes
  • Recharging time - Approximately 14 Hours 10096
  • Mains protection - Fuse: T 0.1 A
  • Battery protection - Polymer resettable fuse
  • Auto shutdown – Yes



Recording

  • Thermal paper - In rolls; Width 50 mm, Length 20 mts, gridded
  • Recording system - Thermal printer, 8 dots/mm
  • Print Width - 40 mm
  • Print channel - 1
  • Paper transport speed - 25 or 50 mm / sec



Sensitivity

  • Input Dynamics - ± 300 mV @ O Hz; ± 5 mV in the pass band
  • Input impedance - > 100 M ohms
  • Frequency Response - 0.1 Hz to 150 Hz (-3 dB) without Mains/ Muscle Filter
  • Time constant - 1.6 seconds
  • CMRR - > 90 dB @ 50 Hz
  • DF protection – Internal



ECG

  • ECG Acquisition - 12 bits; 800 samples/sec.
  • ECG Recording - Real time acquisition and printing of selected lead
  • Recordable Leads - Lead l, II, III, aVR, aVL, aVF or V
  • Recording Sensitivity - 5, 10, or 20 mm/mV ± 5%
  • Filter - Digital linear phase Mains interference cum muscle tremor filter (22 Hz - 3 dB)
  • Keyboard - Rubber keypad with 7 function keys and 15 LED function indicators
