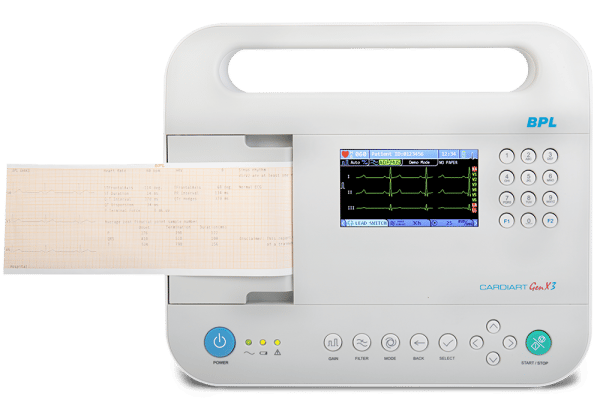

CARDIART Gen X3 (3-channel ECG)
A new-generation 3-channel ECG recorder that comes with the advanced Glasgow ECG Interpretation algorithm, Cardiart GenX3 gives you the choice to select the darkness of the trace, has soft color-coded silicone function keys for one-touch operation and PC Interface for real-time data transfer & data management - all combined inside a compact, easy-to-use ECG device.

Features
    • Three-channel ECG recording with trace darkness control
    • Wide 4.3 inch 65K Color TFT display
    • Glasgow ECG Interpretation algorithm
    • 12-bit A/D converter, 0.05 – 150 Hz bandwidth, 1000 Hz sampling frequency
    • Alphanumeric keypad with soft silicone keys
    • Full disclosure view of ECG analysis on display
    • Internal storage of upto 250 ECGs that can be enlarged by USB
    • Rechargeable Li battery for energy-efficient operation
    • Connectivity: supports USB printer, optional FTP, export selected record(s) in HL7 format
    • Optional: Real-time ECG transfer to PC through USB

Unique Features of Glasgow Algorithm

QTc measurements facilitating assesment of cardiac risk

This algorithm is very effective in interpreting STEMI (ST Segment Elevation Myocardial Infarction) based on age and gender dependent criteria

This algorithm uses measurement from large databases for children and adults giving a high specificity

Has the ability to cope with patients of all ages from birth to old age

“Critical values” included in diagnostic reporting template

Can utilize V4R for neonates and children

Offers short diagnostic reports for hospital market and detailed reports for primary care market

The Glasgow ECG Interpretation Algorithm meets all the IEC 60601-2- 51 requirements and ISO 9001:2008 standards

Product Specifications

ECG Acquisition
ECG Acquisition 12 bits; 1000 samples/ sec/ channel
ECG Leads Standard 12 leads or Cabrera; Acquired 8 leads & Reconstructed 4 leads (Lead III, Lead aVR, Lead aVL, Lead aVF) Manual: 2.5 - 5 -10 - 20 mm/mV ± 5%
Recording Sensitivity Auto: Dependent on the signal strength, Optimizes automatically to 2.5-5-10-20 mm/mV ± 5%
Input Impedance > 10 MΩ @ 10 Hz
Frequency Response 0.05 Hz to 150 Hz (-3dB) without Mains /Muscle and ADF Filters
Time Constant > 3.2 seconds
CMRR > 90dB @ 50Hz
DF Protection Internal

ECG PROCESSING
ECG Analysis & Interpretation Gender, Age & Race specific Advanced ECG Analysis & Interpretation - Glasgow ECG Interpretation Algorithm in Auto mode
ECG Analysis Sampling Rate 500 samples/ second (sps)
Filters Mains interference/ Muscle filter: Linear phase digital 50 Hz Notch filter with selectable 32 Hz. Anti-drift filter: Selectable Digital 0.5Hz Anti Drift High pass linear phase filter
Pacemaker Recognition Recognizes pulse in accordance with applicable IEC standards
Signal Memory 10 Seconds for each lead in Auto mode
Operating Modes Manual: acquisition and printing in real time
Auto: simultaneous acquisition and printing
Heart Rate Meter 30 to 240 BPM ±10% or ±5 BPM, whichever is greater

DISPLAY & STORAGE
Display 4.3 inch Color TFT LCD with 480 x 272 pixel resolution; 65k Color
Keyboard Silicone Rubber keypad with 23 keys & 4 LED indicators
Indicators Mains Connection, Battery Charging, Battery Low & System Errors
Audible Beep Heart Rate and Key Press
Startup Time < 4 seconds
Record Storage 250 ECGs in internal memory

SAFETY CLASSIFICATION
Safety Classification Class I with internal power supply
Degree of Protection Type CF

THERMAL RECORDING
Recording System Thermal printer, 8 dots/ mm, 72 mm usable print width
Paper Transport Speed 5 mm/sec or 12.5 mm/sec or 25mm/ sec or 50 mm/sec
Thermal Paper In rolls: Height 80mm, Length 20m, gridded
Print Channel 3 Channel + 1 Rhythm or 3 Channel;
Print Formats Manual: 3 Ch.
Auto: 3 Ch, 3 Ch + 1 Rhythm with selectable print durations of 2.5 secs./ 5 secs./ 10 secs.

PC CONNECTIVITY
Paperless Workfl ow ECG Data Export feature to multiple formats enables this specification
PC Connectivity Real-time ECG transfer to PC over USB (Optional)

BATTERY & POWER
Battery Rechargeable Lithium Polymer Ion 11.1Vdc, 3000mAh
Mains Protection Fuse: T2A 250 V
Battery Protection In built PCM Module
Power Supply 100-240 VAC; 50/60 Hz
Battery Charging Time Approximately 3 hours 30 minutes from total discharge (Unit off )
Power Consumption Less than 60VA

ENVIRONMENT SPECIFICATIONS
Operating Temperature +10 to +40 °C
Relative Humidity Upto 95% RH Non-condensing
Storage/ Transport Temperature -10 °C to 50 °C
Relative Humidity Upto 95% RH Non-condensing

PHYSICAL SPECIFICATIONS
Dimension Approx. 300mm x 260mm x 80 mm (length x width x height
Weight Approx. 2 Kgs.

STANDARD ACCESSORIES
Patient Cable 1 No.
Limb Electrodes 4 Nos.
Chest Electrodes 6 Nos.
Thermal Paper Roll 1 No.
Cardijelly Bottle 1 No
User Manual 1 No
Earth cable 1 No
Power Cord 1 No

SKU-DSOTIOWKM5J
in stock INR 58000
BPL
1 1

CARDIART Gen X3 - 3 channel ECG

₹58,000
₹69,375   (16%OFF)

1 item left in Stock
