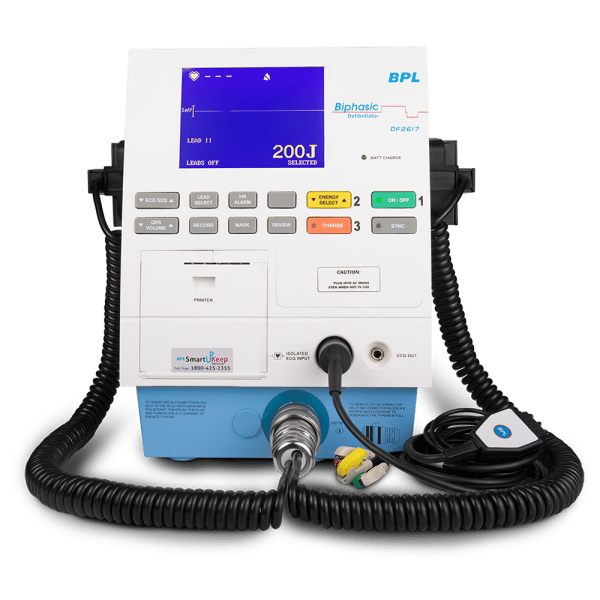

DEFIBRILLATOR DF 2617/R
DF-2617 is designed for manual & AED mode of operation. Easy-to-use interface minimizes the time required to deliver lifesaving shock to SCA patients.
Features
Biphasic Waveform
The current-controlled biphasic waveform lowers the electrical threshold for successful defibrillation, besides adjusting for impedance
1-2-3 Operation
The machine incorporates easy-to-use 1-2-3 operation
High Energy Efficiency
100 charge/discharge of 300J with fully charged new battery
24 Event Recording
Records the heart rate and rhythm and provides the ability to easily archive and review up to 24 recorded event data
Noiseless Thermal Printing
Allows the printing of recorded events using a high resolution thermal print at reduced noise level
LCD Display
LCD display provides crisp and accurate readings with better contrast and brightness
Remote Charging Through Paddles
Remote charging and discharging through paddles facilitates easy charging for convenient use
Optional
DF 2617 R/DF 2617AED R comes with a printer
Prompts for User**
The voice and visual text prompts guide the user through the rescue process of the patient
Guided CPR**
Guided CPR helps in providing a step by step voice instructions on how to perform safe CPR
Selectable Energy Protocols**
Different levels of energy can be selected based on the requirement
Technical Specifications |
|
AC Input |
100 – 230 V AC ± 15% ; 50 / 60 Hz without adjustment. |
Power Consumption |
< 70 VA |
Battery Type |
Rechargeable Sealed Lead Acid 12V, 4.5AH |
Battery Capacity |
More than 100 discharges of 300 Joules (With new and fully charged battery) |
Battery Charging Time |
Approx. 3 hours to 90% of full capacity. 18 hours to 100% capacity |
Dimensions |
260mm (W) x 280mm (D) x 250mm (H) |
Weight |
< 10.5 Kg. (including battery, external paddles) |
Environmental |
|
Operating Temperature |
0 to 400C |
Temperature |
-10 to 60, -10 to 70 (DF 2617 AED/R) |
Relative Humidity |
15 to 95% non condensing, 30- 95% (DF 2617 AED/R |
Relative Humidity (Storage) |
15 to 95% non condensing |
Standards |
|
Classification |
Class 1 with internal power supply as per IEC 60601-1 |
Degree of Protection |
|
ECG Input |
Type CF |
Paddle Input |
Type BF |
Defibrillator |
|
Defibrillator Waveform |
Current controlled Biphasic Waveform |
Energy Selection |
2 – 300 Joules in steps of 2, 3, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 250, 300 Joules |
Energy Select Controls |
Keys on front panel |
Paddle Assembly |
Detachable type external paddle assembly with coiled high voltage cable. Adult and Paediatric paddles integrated into same handle |
Charge Control |
Momentary CHARGE key on the front panel and on the APEX paddle. |
Charge Ready Indication |
Charge done LED on the front panel CHARGE key and Charge done LED on the APEX paddle. Charge done tone, which can be disabled by user |
Disarm Control |
Pressing ENERGY SELECT control after charging has started. Automatic disarm after 60 seconds from charge ready, if shock is not delivered |
Synchroniser |
Energy delivered within 50mSec. of detected R wave peak. SYNC message displayed on screen. SYNC LED illuminates in Sync mode and blinks during each detected QRS wave. Sync marker appears on bothscreen and recorder strip. |
Delivered Energy |
Delivered energy displayed on the screen after each shock. Actual patient impedance is displayed on the screen during shock |
Charge Time |
300 Joules in less than 10 seconds with fully charged new battery. |
Monitor |
|
Display Size |
5.7” STN LCD Display |
Sweep Speed |
25 ± 1 mm/sec |
ECG Input Modes |
ECG input through paddles or 3 lead patient cable |
User Gain Settings |
8 level setting: x0.25, 0.5, 0.75, 1.0, |
1mV Calibration |
A vertical bar line is displayed |
Reset Recovery |
Automatic recovery of waveform |
CMRR |
> 90 dB @ 50 Hz |
Input Impedance |
> 2.5 M Ohms |
Frequency Response |
e 0.5-35 Hz |
Heart Rate Display |
10 to 300 BPM |
Heart Rate Accuracy |
±2 BPM or ±2% whichever is higher |
Heart Rate Alarms |
Audible tone is generated if HR |
QRS Tone |
User adjustable audible tone with every detection of QRS |
Alarm / Alert Tone |
e User adjustable audible tone for |
ECG Out |
1V/mV |
Defibrillator Protection |
Yes |
Freeze |
Yes (In models without recorder) Freezes the ECG trace on the screen. MARK key is used to FREEZE and remove the FREEZE condition. HR display and Alarm limits will be still active |
AED (applicable in DF 2617 AED/R) |
|
Energy @ 50 Ω |
Adult: 200J- 300J |
Waveform |
Current control Biphasic Waveform |
Preset Energy |
Lo=200J, Hi=300J (Programmable |
AED Mode Select Controls |
Momentary AED ON/OFF key on |
Charge Ready Indication |
Display/Voice command |
Printer (Optional) |
|
Paper Speed |
25 ± 1 mm /Sec |
Paper Size and Type |
Thermal paper in rolls. 50 mm width, |
Print Width |
40mm |
Print Channel |
1 |
Event Recording |
Stores and prints 3 seconds of pre critical data and 7 seconds post critical event data up to 24 events. Data is retained even after unit is turned off. |
Print Annotates |
Time, Date,HR, HR Limits, Event |
Recorder Mode |
Configurable to print either real time |
Standard Accessories |
|
Defibrillator-Paddles (Adult & Paediatric) |
1 no. |
Disposable Electrodes |
1 pkt |
Power Cord |
1 no. |
Accessory Bag |
1 no. |
Cardijelly |
1 no. |
Patient Cable |
1 no. |
User Manual |
1 no. |
Recording Paper (20M roll) |
1 no. |
