Non-Invasive & Non-Surgical Treatment for Piles & Other Diseases by Infrared Coagulation - IRC

Infrared coagulators have several design-based benefits over other procedures such as cryo coagulation, thermal coagulation, electrocoagulation and sclerotherapy. For one, the infrared light that generates the heat can be manipulated with great accuracy. It penetrates as deep as 3 mm, and the intensity of its action is dictated solely by how long you apply the heat. You determine the exact duration simply by setting a timer.

ANTI–ADHESIVE AND ULTRA ACCURATE Unlike procedures involving electricity and chemicals, this type of heat treatment has no side effects. What’s more, the only variable that determines the infrared coagulator’s pinpoint-precise action is the light guide’s diameter. You can connect various gauges of fused silica light guides, and their non-stick Teflon® polymer tips are easy to clean and may be disinfected with liquids.

Typical Medical Applications

• Infrared coagulators have proven their merits in applications in,
• Haemorrhoids
• Gynaecology
• ENT
• Cervical Erosions
• Polyps
• Dermatology
• Dentistry
• Condylomas
• Haemangioma

Product Specification

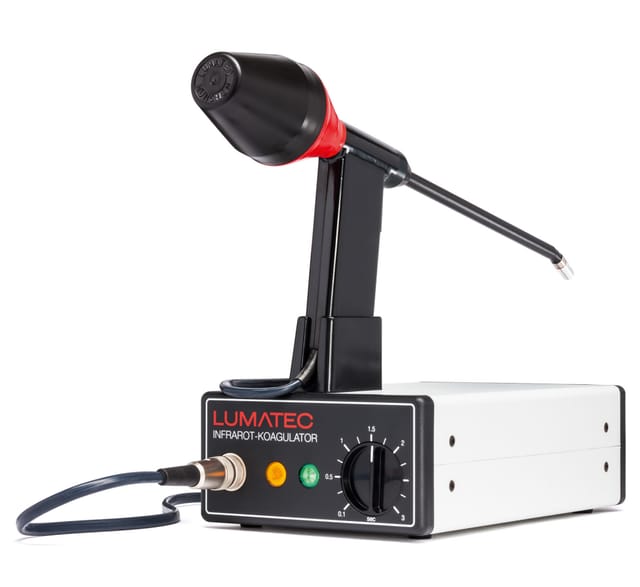

• Power unit
  Power Supply: 100 / 120 / 230 VAC
  Frequency: 50/60 Hz
  Power consumption: 240 VA
  Weight: approx. 2.4 kg
  Protective Class: I, according to VDE 0750 (IEC 601/1)
• Hand Applicator:
  Lamp Voltage: 15 V Lamp
  Power: 150 W
• Light guide available in
  Diameter:  from Ø 2 mm to Ø 10 mm,
  Lengths: from 70 mm to 420 mm
• Optical Output Light Guide
  Ø 2 mm: 3 – 4 W;
  Ø 6 mm: 22 – 29 W;
  Ø 10 mm: 42 – 49W
• Spectrum: 360 – 2500 nm, Maximum at 900 nm
• Operating Temperature: +5 °C up to +35 °C
• Humidity < 80%
• Storage Temperature: -15 °C up to +50 °C
• Humidity < 80 %

This equipment may not be operated in areas that are not explosion safe.

Features

• The penetration depth and intensity of these remarkably precise tools are easily controlled.
• Coagulation in just one to three seconds.
• Tissue will not stick to the instrument
• Precisely adjustable depth of necrosis
• Far simpler and more effective than injections (proctology)
• Interchangeable light guides in various gauges
• Non-hazardous low voltage (15 V) Zero risk of exploding bowel gases (proctology)
• Does not interfere with cardiac pacemakers
• May be used to treat pregnant women
• No return electrode needed

Advantages

• No Hospital Stay
• No Anaesthesia
• No Surgery
• No Pain
• No Blood Loss
• Economical
• Immediate return & routine work
• Safe for diabetics
• Pregnancy is not a contradiction
