6446c2673a43f779a5d68802 VPM 50 Patient Monitor https:https://www.thepassbox.in/s/62aa95d9abc8fddaf93b9bf6/644a51b46fbe97b00f9138b0/vpm-50-patient-monitoring-system.jpg

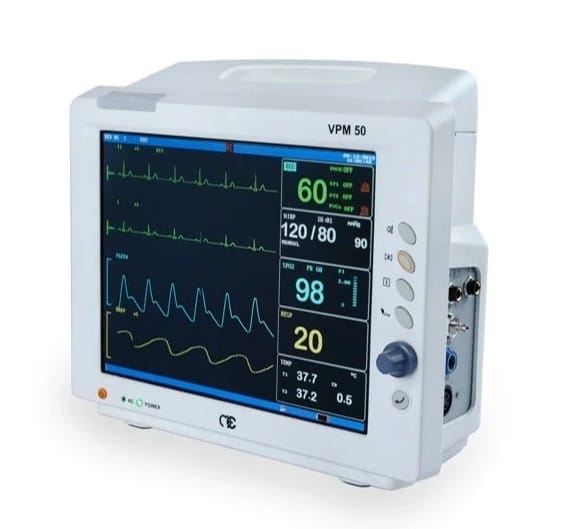

VPM 50 Patient Monitor



Feature

  • 1" Color TFT With Multi Channel Waveforms Display
  • Light Weight, Easy To Carry, Suitable For Ambulance Centre
  • Easy Connecting With Central Monitoring System
  • 90 Hours Data Storage
  • Simple & Easy Operation
  • Suitable For Adult, Pediatrics And Neonates
  • Standard Parameters: 3/5 Lead ECG, SP02, Nibp, 2-Temp, PR



Technical Specification:

ECG:

Electrode

3 or 5 Leads

Display

5 Waveforms with HR

Lead

I, II, III, aVR, aVL, aVF, V (5 Lead)

I, II or III ( 3 Lead)

Gain Selection

x1/4, x1/2, x1 and x2

Frequency Response

Diagnostic: 0.05 to 90 Hz
Monitor: 0.5 to 35 Hz
Surgery: 1-15 Hz

Calibration Signal

1(mV p-p), Accuracy: +5%

ECG Signal Range

±8 m V (Vp -p)



Pulse Oximetry:

Range

0 to 100%

Resolution

1%

Accuracy

70% to 99% range ±2% / 0 to 69%, undefined

Methode

Dual wavelength LED



Nibp:

Technique

Oscillometric during inflation

Range

Adult: 40-270 mm Hg
Pediatric: 40 - 240 mm Hg
Neonate: 40-135 mm Hg

Measurement Cycle

<40 sec, typical

Cycles (Selectable)

2,3,5,10,15,30 min1,2,4 hr

Max. Allowable Cuff Pressure

Adult: 297±3 mm Hg
Pediatric: 240±3 mm Hg
Neonate: 147±3 mm Hg

Resolution

1 mm Hg

Transducer Accuracy

±2 mm Hg or ±2% of reading



Temperature (2 Channel):

Range, Accuracy

0 - 50˚C + 0.1˚C

Display Resolution

±0.1˚C

Probe

YSI 400 AND YSI 700 Series



Respiration Rate:

Rate

Adult : 0 ~ 120 rpm
Neo / Ped 0~ 150 rpm

Resolution

1 rpm

Accuracy

±2 breath / min



Heart (Pulse) Rate:

Source

User Selectable : Smart, ECG, Plinth, Nibp

Range

Adult 15-300 bpm
Pediatric 15 - 350 bpm

Accuracy

±1 bpm or ±1 %



Environment:

Operating Temperature

59˚ - 95˚F (15˚ - 35˚C)

Storage Temperature

23˚ - 122˚F (-5˚ - 50˚C)

Humidity

15% to 90%



Trends:

Memory

96 Hr at 30 seconds intervals for a NIBP reading every 5 minutes

Display

Trabular, graphical



General:

Dimensions

200 (L) x 100 (B) x 200 (T) mm

Weight

1.5 Kg

Power

AC 100-240 V , 50/60 Hz

Power Consumption

35 W

Battery

14.8 V / 2200 Mah Li-Ion

Recharge Time

4.5 hours

Operating Time

3 Hours typical



Standard Accessories:

Finger Probe

1 No

Mains Cable

1 No

Cuff (Adult)

1 No

5 Lead ECG Cable

1 No

Temperature Probe

1 No



SKU-BUSK1QYRCS
in stockINR 50000
MAESTROS ELECTRONICS
1 1
VPM 50 Patient Monitor

VPM 50 Patient Monitor

₹50,000
₹70,000   (29%OFF)

1 item left in Stock

Sold By: PBX202010
Features
  • 12.1 colour TFT with Multi channel wave form desplay
  • Light weight , easy to carry ,suitable for ambulance center
  • Easy connecting with central monitoring system
  • 90 Hours data storage
  • Simple & easy operation
  • Suitable for adult pediatrics & neonates
  • Standerd parameters : 3/5 Lead ECG, SPO2 , Nibp , 2- Temp , PR

Estimated Delivery Time:_5 to 7 Working Days


SHARE PRODUCT
VARIANTSELLERPRICEQUANTITY

Specifications

BrandMAESTROS ELECTRONICS

Description of product

VPM 50 Patient Monitor



Feature

  • 1" Color TFT With Multi Channel Waveforms Display
  • Light Weight, Easy To Carry, Suitable For Ambulance Centre
  • Easy Connecting With Central Monitoring System
  • 90 Hours Data Storage
  • Simple & Easy Operation
  • Suitable For Adult, Pediatrics And Neonates
  • Standard Parameters: 3/5 Lead ECG, SP02, Nibp, 2-Temp, PR



Technical Specification:

ECG:

Electrode

3 or 5 Leads

Display

5 Waveforms with HR

Lead

I, II, III, aVR, aVL, aVF, V (5 Lead)

I, II or III ( 3 Lead)

Gain Selection

x1/4, x1/2, x1 and x2

Frequency Response

Diagnostic: 0.05 to 90 Hz
Monitor: 0.5 to 35 Hz
Surgery: 1-15 Hz

Calibration Signal

1(mV p-p), Accuracy: +5%

ECG Signal Range

±8 m V (Vp -p)



Pulse Oximetry:

Range

0 to 100%

Resolution

1%

Accuracy

70% to 99% range ±2% / 0 to 69%, undefined

Methode

Dual wavelength LED



Nibp:

Technique

Oscillometric during inflation

Range

Adult: 40-270 mm Hg
Pediatric: 40 - 240 mm Hg
Neonate: 40-135 mm Hg

Measurement Cycle

<40 sec, typical

Cycles (Selectable)

2,3,5,10,15,30 min1,2,4 hr

Max. Allowable Cuff Pressure

Adult: 297±3 mm Hg
Pediatric: 240±3 mm Hg
Neonate: 147±3 mm Hg

Resolution

1 mm Hg

Transducer Accuracy

±2 mm Hg or ±2% of reading



Temperature (2 Channel):

Range, Accuracy

0 - 50˚C + 0.1˚C

Display Resolution

±0.1˚C

Probe

YSI 400 AND YSI 700 Series



Respiration Rate:

Rate

Adult : 0 ~ 120 rpm
Neo / Ped 0~ 150 rpm

Resolution

1 rpm

Accuracy

±2 breath / min



Heart (Pulse) Rate:

Source

User Selectable : Smart, ECG, Plinth, Nibp

Range

Adult 15-300 bpm
Pediatric 15 - 350 bpm

Accuracy

±1 bpm or ±1 %



Environment:

Operating Temperature

59˚ - 95˚F (15˚ - 35˚C)

Storage Temperature

23˚ - 122˚F (-5˚ - 50˚C)

Humidity

15% to 90%



Trends:

Memory

96 Hr at 30 seconds intervals for a NIBP reading every 5 minutes

Display

Trabular, graphical



General:

Dimensions

200 (L) x 100 (B) x 200 (T) mm

Weight

1.5 Kg

Power

AC 100-240 V , 50/60 Hz

Power Consumption

35 W

Battery

14.8 V / 2200 Mah Li-Ion

Recharge Time

4.5 hours

Operating Time

3 Hours typical



Standard Accessories:

Finger Probe

1 No

Mains Cable

1 No

Cuff (Adult)

1 No

5 Lead ECG Cable

1 No

Temperature Probe

1 No
