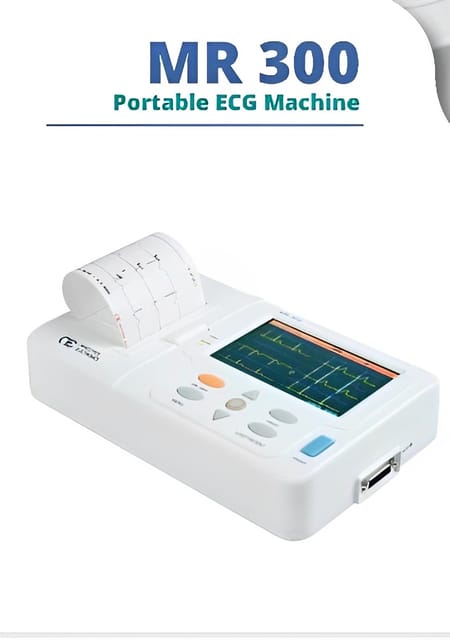

MR 300 Portable ECG Machine
₹40,250
₹65,000 (38%OFF)
5 item left in Stock
Features
- 3 Channel Portable ECG Machine
- 5 " Colour TFT Display
- 12 Lead Simultaneous Acquisition
- In Build 3" Thermal Array Printer
- More Than 50 ECG On Full Charge Battery
- ECG Measurement & Interpretation Facility
- PC Connectivity via USB Memory
- Unlimited Data Storage via USB Stick
- Cloud Server Connectivity via BT/GSM (Optional)
Estimated Delivery Time:_5 to 7 Working Days
| VARIANT | SELLER | PRICE | QUANTITY |
|---|
Specifications
| Brand | MAESTROS ELECTRONICS |
Description of product
MR 300 Portable ECG Machine
Features:
- 5 " Colour TFT Display
- 12 Lead Simultaneous Acquisition
- In Build 3 " Thermal Array Printer
- ECG Measurement & Interpretation Facility
- More Than 50 ECG On Full Charge Battery
- Pc Connectivity Via USB Memory
- Unlimited Data Storage Via USB Stick
- Cloud Server Connectivity Via BT/GSM ( Optional)
Technical Specifications:
Measuring Parameters:
| Leads | 12 Standard Leads |
| Mode of Operation | Auto / Manual |
| Long Lead Print | Yes |
| ECG Print Style | 3,3+1 |
| Display Lead | Yes |
| Display Type | 5"Color TFT |
| Display Resolution | 800x480 Pixels |
| Frequency Response | 0.05 to 125 Hz |
| Sweep Speed | 12.5/25 mm/s |
| Sensitivity | 5/10/15/20 mm/mV |
| CMRR | >90 dB |
| Input Impedance | > 100M Ohms |
| Patient Storage Data | 5 Patients |
| Printer Type | Thermal |
| Paper Width | 80mm |
| Memory Stick Interface | Yes |
| Interpretation | Yes |
Electrical:
| Power Supply | 110VAC to 260 VAC, 50-60 Hz |
| Power Consumption | 30Watt |
| Filters | Digital AC/50Hz |
| Battery Rating | 7.4V,2200mAh, Li-ion Battery |
| Recharging Time | 4Hours Max |
| Operating Time | >40ECG's |
Physical Characteristics:
| Weight | 850 gm |
| Dimensions | 250(L) 156(B)x 65(H)mm |
Operating & Storage Condition:
| Temperature | 25-55°C |
| Pressure | 50-160Kpa |
| Humidity | Up to 90% Non-condensing |
