PULSE OXIMETER CLEO
₹40,250
₹42,000 (4%OFF)
1 item left in Stock
Features
- 7” Colour TFT LCD Screen With LED Backlight
- Plethysmograph, Signal Strength, Numeric Value Of Spo2 And Pulse Rate
- Trend Of Spo2 And Pulse Rate For 24 Hours
- Pitch Tone Variation For Different Spo2 Values To Alert About Changes In Oxygen Saturation Levels
- Built- In Rechargeable Nimh Battery
- Real-Time Clock To Facilitate Online Patient Monitoring
- The Device Can Be Connected To Central Nursing Station Through Ethernet Interface
- Dolphin Module
Estimated Delivery Time:_5 to 7 Working Days
| VARIANT | SELLER | PRICE | QUANTITY |
|---|
Specifications
| Brand | BPL |
Description of product

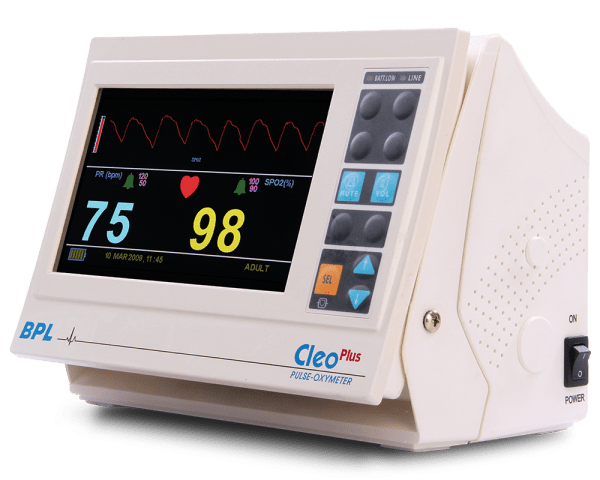

Pulse Oximeter Cleo
Cleo Plus is a 7" compact pulse oximeter that can display parameters like SpO2, Plethysmograph, Signal strength and Pulse rate. It comes with a built-in NiMH rechargeable battery along with Pitch Tone Variation feature that alerts about changes in oxygen saturation levels.
Features
Compact Display
7” colour TFT LCD screen with LED backlight
Parameter Display
Plethysmograph, Signal strength, Numeric value of SpO2 and Pulse rate
SpO2 and Pulse Rate
Trend of SpO2 and pulse rate for 24 hours
Pitch Tone Variation
Pitch tone variation for different SpO2 values to alert about changes in oxygen saturation levels
Rechargeable Battery
Built- in rechargeable NiMH battery
Real- time Clock
Real-time clock to facilitate online patient monitoring
Medius+ CNS connectivity
The device can be connected to Central Nursing Station through ethernet interface
Optional
Dolphin module
Technical Specifications
|
General |
|
|
Display |
7 inch TFT LCD with LED Backlight |
|
Resolution |
800 x 480 pixels |
|
Writing speed |
25mm/sec |
|
Alarms |
Visual (Bell) & Audio |
|
Freeze |
On demand |
|
Keyboard |
Flat |
|
CNS Back Panel Connector |
9 Pin D-sub Connector |
|
Dimensions |
235 X 174 X 140 mm |
|
Weight |
2.5Kgs (Approx) |
|
Safety Standards |
Class I, Type BF Compling to IEC |
|
Trend |
24 Hours |
|
Power supply |
|
|
AC-DC Adapter |
15V DC/1.5 A (BPL Supplied) |
|
AC Mains Variation |
100 – 264 V AC |
|
Power consumption |
< 22VA |
|
Battery |
Rechargeable NiMH 9.6V/1800mAh |
|
Battery Backup |
120 mins with a fully charged battery |
|
DOLPHIN Module (optional) |
|
|
Patient Safety |
Class 1 BF type applied part |
|
Amplifier |
Fully isolated |
|
SPO2 Range |
0 – 100% |
|
Accuracy |
± 3% at 70 – 100% |
|
Low Alarm Limit Range |
50 ~ 95% |
|
High Alarm Limit Range |
55 ~ 100% |
|
Resolution |
1% |
|
Pulse Rate Range |
30 – 240 BPM |
|
Pulse Rate Accuracy |
±5BPM |
|
Plethysmograph |
Displayed on waveform channel (auto gain) |
|
SpO2 |
|
|
Patient Safety |
Class 1 BF type applied part |
|
Amplifier |
Fully isolated |
|
SPO2 Range |
0 – 100% |
|
Accuracy |
±2% between 80-100 |
|
Low Alarm Limit Range |
50 ~ 95% |
|
High Alarm Limit Range |
55 ~ 100% |
|
Resolution |
1% |
|
Pulse Rate Range |
30 – 240 BPM |
|
Pulse Rate Accuracy |
±2BPM or 2% whichever is higher |
|
Plethysmograph |
Displayed on waveform channel (auto gain) |
|
Data Update Period |
<13 sec |
|
Environmental |
|
|
Environmental |
Operating 10 to 40°C |
|
Relative Humidity |
Operating <85 % non-condensing Transport and Storage condensing 10 to 90 % non |
|
Standard Accessories |
|
|
SpO2 Cable with Finger Probe |
1 No |
|
Fuse (Slow blow 1.25A) |
1 No |
|
AC-DC Adaptor |
1 No |
|
User Manual |
1 No |
|
Clip-Patient Cable |
1 No |
|
Wall Mountable Stand |
(Optional) |
